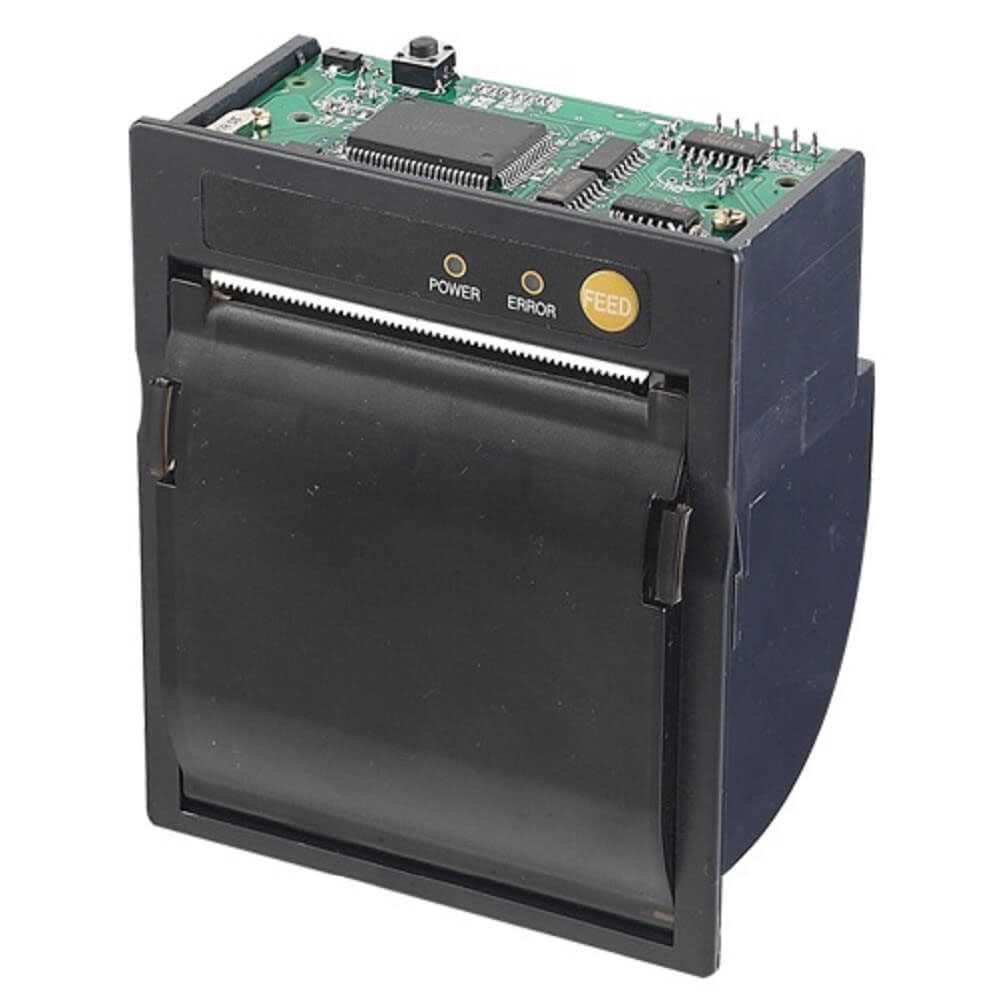

thermal receipt panel module ticket printer
| Model | P30 | P40 / PP40 | P60 / PP60 |
| Printing method | Direct thermal line printing | ||
| Characters per line | 42cpl (MAX) | ||
| Characters size | Eng : 9x24 dots, 12x24 dots Kor : 16x24 dots [24x24 dots] | ||
| Resolution | 203 dpi, 8 dots/mm | ||
| Print width | 2-inch (48mm, 384 dots) | ||
| Dimensions | 75 x 55 x 30.3mm | 80 x 75 x 40mm | 76 x 93 x 62mm |
| Weight | 83g | P40 :96g, PP40 : 108g | P60 : 125g, PP60 : 136g |
|
Interface |
· P30, P40, P60 : UART(RS-232C or TTL) · PP40, PP60 : UART or Parallel |
||
|
Paper supplied |
Thermal roll paper (57mm wide, 30Ø) | Thermal roll paper (57mm wide, 40Ø) | Thermal roll paper (57mm wide, 60Ø) |
| Paper thickness : 60±5㎛ | |||
|
Barcodes |
1- dimension:Code128, EAN 128, Code39, I2/5, Code93, UPC, EAN, KAN, JAN, CODABAR 2- dimension:PDF417, QR Code, DATA Matrix |
||
|
Input power |
5VDC, Standby 60mA and MAX 2.5A (P30, P40) 9VDC, Standby 60mA and MAX 3A (Standard model) 12~24VDC, Standby 60mA and MAX 3A (PP40, PP60) |
||
